WPC Wall Panels for Interior Wall Cladding
Sixteen extrusion widths between 159 mm and 203 mm, matched corner trims, and a joint design that hides the fixing. One container covers a hotel floor or a distributor pallet run.
- 500 m²MOQ per colour
- 15-25 daysProduction lead time
- 3 daysSample dispatch
- 16 linesWall, ceiling & floor
- 100+Export countries
- ISO 9001Quality system
- E0 / B1Formaldehyde & fire
- QingdaoLoading port
WPC Wall Panels overview
WPC wall panels are extruded from PVC resin and wood fibre, then laminated with a decorative film. The result is a panel that looks like timber or stone but does not absorb water, does not need painting and does not support mould growth — which is why they have replaced wall tiles and wallpaper in wet and high-turnover interiors.
The core is hollow, so a 9 mm panel weighs about 5.5 kg per m². A three-person crew can clad a hotel corridor without scaffolding, and the tongue-and-groove joint means no visible screws: clips and adhesive are hidden behind the panel.
We extrude in-house, so the panel width is a production parameter rather than a catalogue limitation. If your market needs a 190 mm or 220 mm module to suit a ceiling grid or a wall bay, we cut a die for it. Die cost is waived above a first order of 3,000 m².
Specifications
Confirm the highlighted values against your project drawing before ordering — widths and thicknesses are made to order, not pulled from stock.
| Panel width | 159 / 160 / 176 / 178 / 203 mm (custom 150–400 mm) |
|---|---|
| Panel thickness | 5 mm solid, 7 / 8 / 9 mm hollow |
| Standard length | 2,900 mm (custom 2,400–5,800 mm) |
| Surface | Laminated film, wood grain / marble / solid colour |
| Joint | Tongue and groove, concealed clip |
| Weight | ≈ 5.5 kg/m² at 9 mm |
| Fire performance | B1 (GB 8624) tested; B2 available |
| Formaldehyde | E0 (no added formaldehyde in the core) |
| Water absorption | < 0.5% after 24 h immersion |
| Colour fastness | Grade 4-5 (blue wool scale) |
| Packing | 10 pcs per carton (≈ 5.16 m² at 178 × 2900 mm) |
| MOQ | 500 m² per colour |
| Lead time | 15-25 days after deposit |
| HS code | 3916.10 |
Available colours & surfaces
Natural oakWalnutTeakGrey ashWhite matteMarble effectBrushed metalCustom RAL / Pantone
Packing & loading
| Pieces per carton | 10 pcs |
|---|---|
| Area per carton | ≈ 5.16 m² (178 mm × 2900 mm) |
| Carton dimensions | 2,950 × 200 × 95 mm |
| Weight per carton | ≈ 29 kg |
| 20'GP load | ≈ 1,800 m² |
| 40'HC load | ≈ 3,600 m² |
| Packing material | Shrink wrap + corner protectors + export carton |

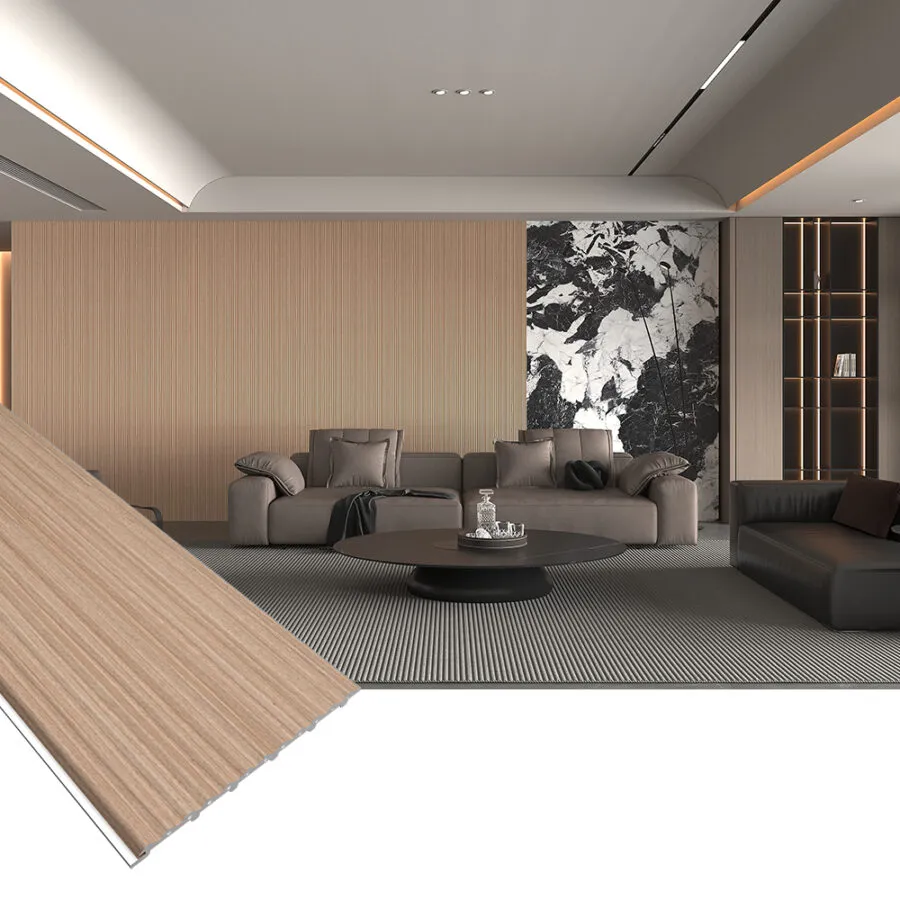

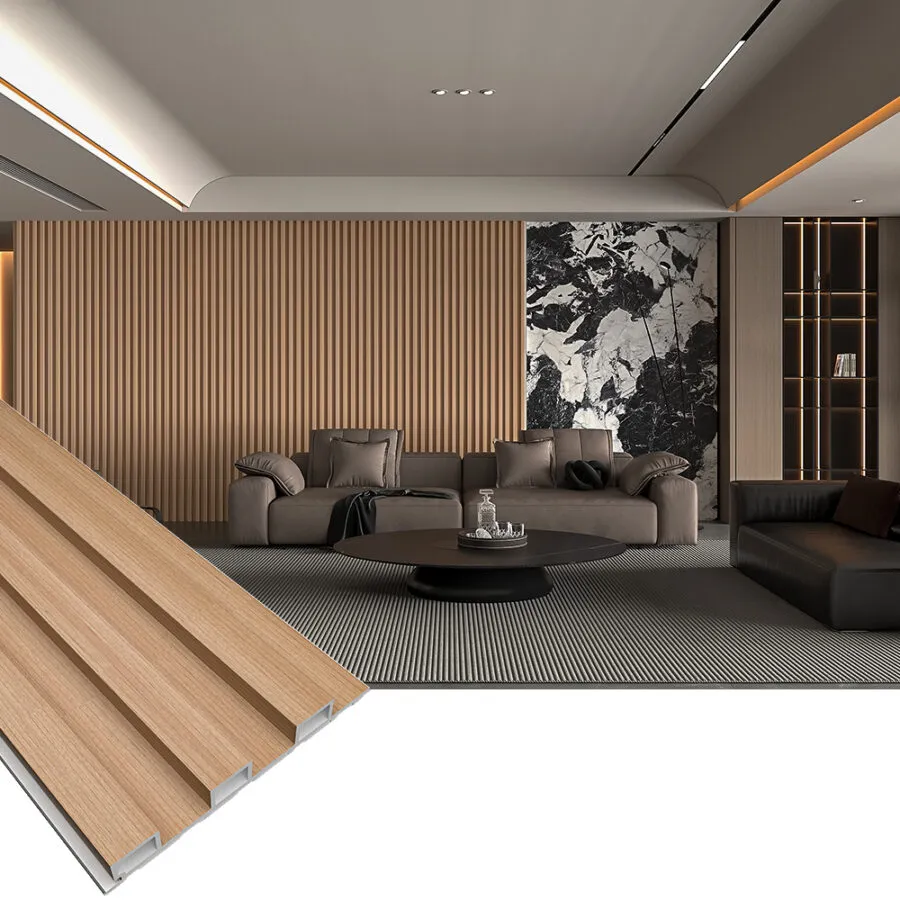

Product images
Where it is used
- Hotel and apartment feature walls and corridors
- Retail shopfitting and display back walls
- Office reception and meeting room walls
- Restaurant and café interiors, including splash zones
How it is installed
- Check the substrate is flat to within 3 mm over 2 m and dry. Seal damp masonry with a vapour barrier first.
- Fix the first panel plumb with clips at 400 mm centres, or bond with MS polymer adhesive directly to a sound substrate.
- Slide the following panels into the tongue-and-groove, keeping joints tight and consistent in the light direction.
- Finish with the matching corner trim, skirting and, for ceilings, a false beam profile.
WPC Wall Panels — buyer questions
What is the difference between 159 mm and 203 mm WPC panels?
Width only. Wider panels cover a wall with fewer joints and fewer clips, which reduces labour cost on large flat walls. Narrower panels bend more easily around columns and are easier to carry in a lift, so they are often chosen for refurbishment work.
Can WPC wall panels be used in a bathroom?
Yes, provided the panel is not directly in the shower spray zone. The core does not absorb water, so a 9 mm panel is suitable for bathroom walls and ceilings. In the shower enclosure itself we recommend a solid 5 mm panel or a UV marble sheet with sealed joints.
Do the panels need an expansion gap?
Yes. Leave 3–5 mm at each end and at abutments for a 2,900 mm panel. The material moves with temperature; a tight butt against a corner will eventually bow and open the joint.
Related products
UV Marble Sheets
3 mm PVC marble sheets with a UV-cured high-gloss surface. 1,220 × 2,440 mm and 1,220 × 2,900 mm, seamless-look marble and stone patterns, for feature walls, hotel bathrooms and TV backdrops.
View details →
Bamboo Charcoal Wall Panels
5 mm and 8 mm interior wall boards with a bamboo charcoal composite core and printed decorative film. Large-format 1,220 × 2,800 mm sheets, E0 rated, for fast apartment and hotel wall finishes.
View details →
Acoustic Panels
Recycled PET felt panels and slatted timber acoustic systems for offices, meeting rooms and hospitality. NRC 0.55–0.85 depending on build-up and mounting.
View details →Order WPC Wall Panels for your market
Send your panel schedule and destination port. We reply with an FOB Qingdao per m² quotation, a container loading plan and the next available production slot.
Request a quotation on WhatsAppor email info@chanta.group
