3D Wall Panels — Textured PVC and PU Relief Panels
Depth is the product. These panels are specified where a flat wall finish would be invisible — behind a reception desk, at a bar front, or on a corridor wall lit by grazing light.
- 500 m²MOQ per colour
- 15-25 daysProduction lead time
- 3 daysSample dispatch
- 16 linesWall, ceiling & floor
- 100+Export countries
- ISO 9001Quality system
- E0 / B1Formaldehyde & fire
- QingdaoLoading port
3D Wall Panels overview
A 3D wall panel works by casting shadow. The pattern relief is 8–25 mm depending on the mould, and the panel only reads properly when light crosses it at a shallow angle. That is why the specification conversation is as much about the lighting design as about the panel.
PU panels are the premium option: light, dimensionally stable, and able to carry fine detail in a mould. PVC 3D panels are thinner and cheaper, and are the right choice for large wall areas where the pattern repeat needs to be economical.
Panels can be supplied primed for site painting, or factory finished in wood grain, stone or metallic effects. Factory finishing gives a consistent colour across the wall; site painting gives the designer freedom to match a specific paint specification. Tell us which you want before production.
Specifications
Confirm the highlighted values against your project drawing before ordering — widths and thicknesses are made to order, not pulled from stock.
| PU panel size | 1,200 × 600 mm and 600 × 600 mm |
|---|---|
| PU relief depth | 8–25 mm depending on pattern |
| PU weight | 2.5–3.5 kg per 1,200 × 600 mm panel |
| PVC 3D panel size | 500 × 500 mm and 600 × 600 mm |
| PVC thickness | 1.5–2.0 mm |
| Material | Polyurethane resin with stone powder, or rigid PVC |
| Surface | Primed for painting, or factory finished wood / stone / metallic |
| Fire performance | B1 (GB 8624) tested for PU with fire retardant |
| Installation | Adhesive bonded; PU can also be screwed and plugged |
| Pattern repeat | Continuous across panels; match marks on the reverse |
| MOQ | 300 m² or 500 panels per pattern |
| Lead time | 20-30 days after deposit (moulded patterns) |
| HS code | 3926.90 |
Available colours & surfaces
Primed white (paintable)Natural oakAntique goldBrushed silverRust stoneConcrete greyMatte blackCustom colour
Packing & loading
| PU panels per carton | 8 panels (1,200 × 600 mm) |
|---|---|
| Area per carton | ≈ 5.76 m² |
| Carton weight | ≈ 24 kg |
| PVC panels per carton | 20 panels (500 × 500 mm) |
| 40'HC load | ≈ 900 m² PU / 1,800 m² PVC |
| Protection | Foam interleaves between panels; edges corner-protected |

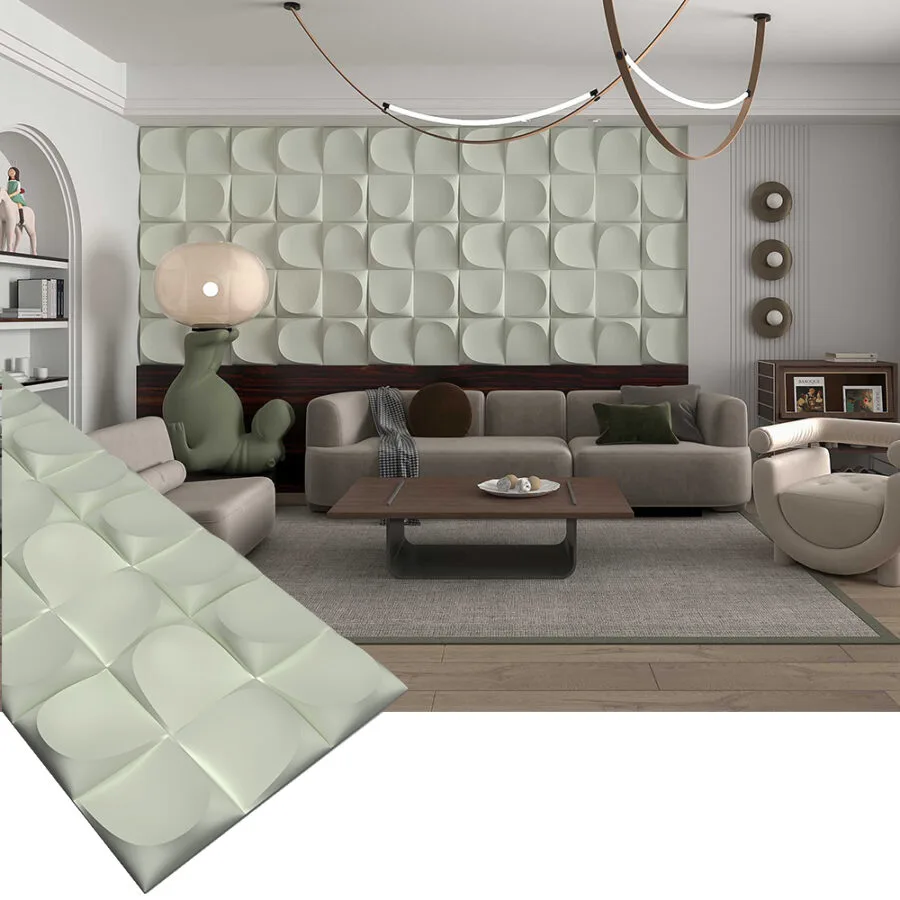

Product images

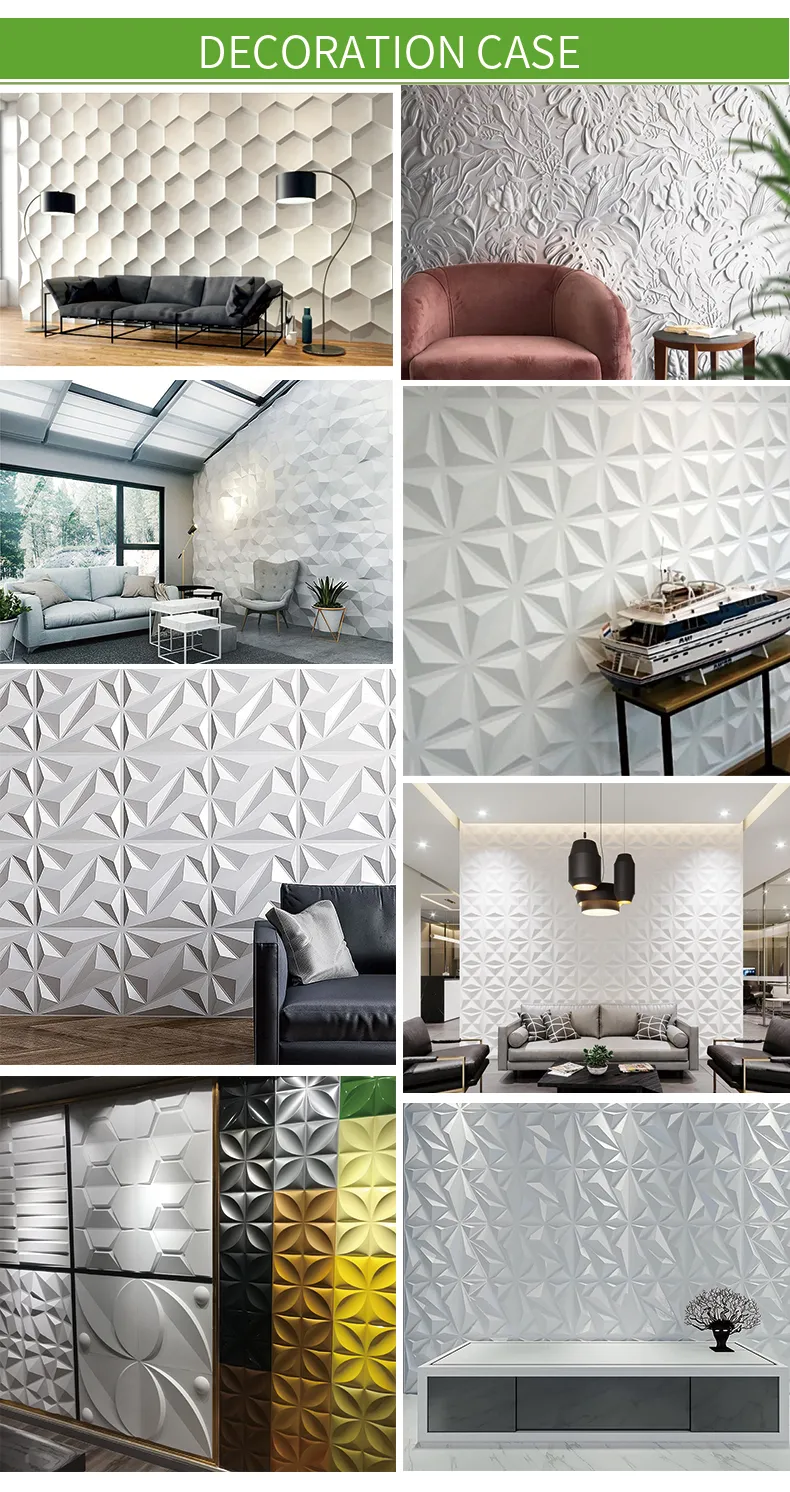

Where it is used
- Reception desks, bar fronts and headboards
- Corridor and lobby feature walls lit by grazing light
- Retail and exhibition stands
- Restaurant and nightlife interiors
How it is installed
- Mark the pattern repeat across the wall before fixing so panel joints fall on the pattern, not across it.
- Bond with a full-bed PU or MS polymer adhesive; relief panels need support across the whole face.
- Press panels into place with a roller over the flat areas, working from the centre outwards.
- If painting, use a roller followed by a brush in the recesses; spraying gives the most even result on deep relief.
3D Wall Panels — buyer questions
Will a 3D panel look right without special lighting?
It will look flat in diffuse overhead light. Depth only reads when light crosses the surface at a shallow angle — a wall washer, a linear cove or daylight from the side. If the lighting design is fixed and diffuse, choose a flat panel with stronger pattern instead.
PU or PVC for a large wall?
PVC for area, PU for detail. PVC panels are far cheaper per square metre but the relief is shallow. Use PU where the wall is the focal point and the area is modest, and PVC where a large repeated surface has to stay on budget.
Can 3D panels be used on a ceiling?
Yes for PU, which is light and can be bonded with an adhesive rated for overhead use. PVC 3D panels are too thin to stay flat on a ceiling unless they are fully bonded to a solid substrate.
Related products
PU Stone Wall Panels
Polyurethane stone-effect panels reproducing split-face, ledgestone and cliffstone textures at a fraction of natural stone weight. 1,200 × 600 mm and 600 × 300 mm formats.
View details →
Soft Stone Wall Panels
Flexible mineral stone sheets 2–4 mm thick that bend around columns and curves, reproducing slate, travertine and sandstone. Sheet sizes to 1,220 × 2,440 mm for large seamless walls.
View details →
Flexible Stone Wall Panels
1–2 mm flexible stone veneer for over-cladding existing walls, curved surfaces and lightweight facades. Reproduces stone and wood grain at around 1 kg per square metre.
View details →Order 3D Wall Panels for your market
Send your panel schedule and destination port. We reply with an FOB Qingdao per m² or per panel quotation, a container loading plan and the next available production slot.
Request a quotation on WhatsAppor email info@chanta.group
